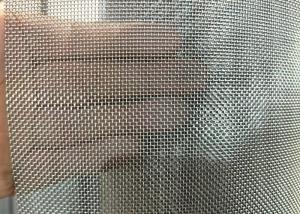

stainless steel 304/316 woven wire mesh 12X12mesh woven stainless steel wire mesh stianless steel wire mesh cloth

Product Categories

Anping County Fuhang Wire Mesh Products Co., Limited

Contact Now

stainless steel 304/316 woven wire mesh 12X12mesh woven stainless steel wire mesh stianless steel wire mesh cloth

Name: stainless steel 304316 woven wire mesh 12X12mesh woven stainless steel wire mesh stianless steel wire mesh cloth
Brand: FUHANG
Price: 1 USD

China stainless steel 304/316 woven wire mesh 12X12mesh woven stainless steel wire mesh stianless steel wire mesh cloth wholesale

Brand Name : FUHANG

Model Number : 12X12Mesh

Certification : ISO9001

Place of Origin : China

MOQ : 1 Square Meter

Price : 1-30 Square Meter $15/Square Meter >30 Square Meters $13/Square Meter

Payment Terms : L/C, T/T

Supply Ability : 1000 Rolles Per Month

Delivery Time : 5-8 work days

Packaging Details : paper tube inside+ wodden box +plastic bag

Material : 304/304L/316/316L/310/310S/Monel

Application : Filters,Woven Wire Mesh,mining,Protecting Mesh

Weave style : Plain Weave

Type : Wire Cloth

Technique : Woven

Wire diameter : 0.8mm, 0.7mm, 0.6mm, 0.5mm, 0.4mm

Width : 0.5-4meter

Usage : oil,space flight,filter,Printing,chmical industry

Length : 1-30m,30m/roll 50m/roll or as required,30m-100m or customerized

Feature : Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali resist,alkali-resisting etc

Color : Silver

Hole shape : Square Hole

Mesh : 1-635mesh

Advantage : Superior wire,standard mesh,factory direct sale,competitive price

Mesh count : 2-635mesh

Sample : free

Name : 304 316 12Mesh Plain Woven Stainless Steel Wire Mesh

Packing : paper tube inside+ wodden box +plastic bag +

Contact Now

Stainless steel wire mesh, also known as wire cloth or wire fabric, is renowned for its remarkable versatility. The distinguishing characteristic of wire mesh is the matrix of wires that are arranged at 90-degree angles. We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 201, 202, 304,304L,310, 310S, 316, 316L ,MONEL ,321 ,430 etc.

Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

stainless steel 304/316 woven wire mesh 12X12mesh woven stainless steel wire mesh stianless steel wire mesh cloth

Features

12 wires per inch
Material is hard to bend by hand and can be cut with tin snips or aircraft shears
Commonly used for air vents and filters
This sturdy market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth

Product infomation:

(1) product range : usually,manufactured in 30m ( up to 200) long and in width of 36``, 48``, 1m, 1.2m, 1.5m, 2.0m etc. or cut to length panels as per client’s requirement.

(2) Packing: water-proof paper ,woven bag and also can be made as per client requirement

(3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.

stainless steel 304/316 woven wire mesh 12X12mesh woven stainless steel wire mesh stianless steel wire mesh cloth

(4) mesh counts: 1 mesh to 635 mesh.

(5) sample: available.

Ⅰ. Plain Weave Stainless Steel Wire Mesh Mesh

Mesh Count per Inch	Wire Diameter (mm)	Aperture Size (mm)	Open Area	Weight for Stainless Steel (kg/sq m)
2	1.8	10.9	74%	3.22
2	1.6	11.1	76%	2.54
2	1.4	11.3	79%	1.95
3	2	6.467	58%	5.96
3	1.8	6.667	62%	4.83
3	1.6	6.867	66%	3.82
3	1.4	7.067	70%	2.92
4	2	4.35	47%	7.95
4	1.8	4.55	51%	6.44
4	1.6	4.75	56%	5.09
4	1.4	4.95	61%	3.89
4	1.2	5.1	65%	3.11
4	1	5.35	71%	1.99
4	0.9	5.45	74%	1.61
5	1.2	3.83	57%	3.88
5	1	4.08	65%	2.48
6	1.6	2.633	39%	7.63
6	1.4	2.833	45%	5.84
6	1.2	3.033	51%	4.29
6	1	3.233	58%	2.98
6	0.9	3.333	62%	2.41
6	0.8	3.433	66%	1.91
6	0.71	3.523	69%	1.5
8	1.25	1.925	37%	6.21
8	1.12	2.055	42%	4.99
8	1	2.175	47%	3.97
8	0.9	2.275	51%	3.22
8	0.8	2.375	56%	2.54
8	0.71	2.465	60%	2
8	0.63	2.545	64%	1.58
8	0.56	2.615	68%	1.25
10	0.9	1.64	42%	4.02
10	0.8	1.74	47%	3.18
10	0.71	1.83	52%	2.5
10	0.63	1.91	57%	1.97
10	0.56	1.98	61%	1.56
10	0.5	2.04	65%	1.24
12	0.8	1.317	39%	3.82
12	0.71	1.407	44%	3.01
12	0.63	1.487	49%	2.37
12	0.56	1.557	54%	1.87
12	0.5	1.617	58%	1.49
12	0.45	1.667	62%	1.21
14	0.56	1.254	48%	2.18
14	0.5	1.314	52%	1.74
14	0.45	1.364	57%	1.41
14	0.4	1.414	61%	1.11
14	0.355	1.459	65%	0.88
14	0.315	1.499	68%	0.69
16	0.63	0.958	36%	3.15
16	0.56	1.028	42%	2.49
16	0.5	1.088	47%	1.99
16	0.45	1.138	51%	1.61
16	0.4	1.188	56%	1.27
16	0.355	1.233	60%	1
16	0.315	1.273	64%	0.79
18	0.236	1.175	83%	0.5
20	0.56	0.71	31%	3.12
20	0.5	0.77	37%	2.48
20	0.45	0.82	42%	2.01
20	0.4	0.87	47%	1.59
20	0.355	0.915	52%	1.25
20	0.315	0.955	57%	0.99
24	0.45	0.608	33%	2.41
24	0.355	0.703	44%	1.5
24	0.315	0.743	49%	1.18
28	0.355	0.552	37%	1.75
28	0.315	0.592	43%	1.38
30	0.355	0.492	34%	1.88
30	0.315	0.532	39%	1.48
30	0.28	0.567	45%	1.17
30	0.25	0.597	50%	0.93
30	0.224	0.623	54%	0.75
36	0.25	0.456	42%	1.12
36	0.224	0.482	47%	0.9
36	0.212	0.494	49%	0.8
40	0.224	0.411	42%	1
40	0.212	0.435	47%	0.79
40	0.19	0.445	49%	0.72
40	0.132	0.503	79%	0.35
50	0.21	0.298	34%	1.1
50	0.2	0.308	37%	0.99
50	0.19	0.318	39%	0.9
50	0.16	0.348	47%	0.64
50	0.15	0.358	50%	0.56
60	0.18	0.243	33%	0.97
60	0.16	0.263	39%	0.76
60	0.14	0.283	45%	0.58
70	0.15	0.213	34%	0.78
70	0.14	0.223	38%	0.68
70	0.125	0.238	43%	0.54
80	0.14	0.178	31%	0.78
80	0.125	0.193	37%	0.62
100	0.112	0.142	31%	0.62
100	0.1	0.154	37%	0.5
100	0.09	0.164	42%	0.4
100	0.08	0.174	47%	0.32
120	0.09	0.122	33%	0.48
120	0.08	0.132	39%	0.38
120	0.065	0.147	48%	0.25
140	0.08	0.101	31%	0.45
150	0.071	0.098	34%	0.38
150	0.065	0.109	42%	0.27
165	0.05	0.104	46%	0.2
180	0.06	0.081	33%	0.32
180	0.05	0.091	42%	0.22
200	0.05	0.077	37%	0.25
200	0.04	0.087	47%	0.16
230	0.036	0.074	45%	0.15
250	0.04	0.062	37%	0.2
270	0.04	0.054	33%	0.21
270	0.036	0.058	38%	0.17
300*	0.04	0.045	28%	0.24
300*	0.036	0.055	42%	0.13
325*	0.036	0.042	29%	0.21
325	0.028	0.05	41%	0.13
350*	0.03	0.043	34%	0.16
400*	0.03	0.034	27%	0.18
500*	0.025	0.026	26%	0.16

Ⅱ. Dutch Weave Stainless Steel Wire Mesh

Mesh	Wire Diameter				Weave
	Warp		Shute
	in	mm	in	mm
12x64	0.023	0.58	0.0165	0.42	Plain
14x88	0.019	0.48	0.012	0.30	Plain
14x110	0.016	0.40	0.011	0.28	Plain
24x110	0.014	0.355	0.010	0.25	Plain
16X200	0.014	0.355	0.010	0.25	Twill
30X150	0.009	0.23	0.007	0.18	Plain
20X200	0.0135	0.34	0.011	0.28	Twill
40X200	0.007	0.18	0.0055	0.14	Plain
20X300	0.010	0.25	0.007	0.18	Twill
30X250	0.010	0.25	0.008	0.20	Twill
20X350	0.010	0.25	0.006	0.15	Twill
20X250	0.010	0.25	0.0082	0.21	Twill
50X600	0.007	0.18	0.0035	0.09	Twill
28X400	0.007	0.18	0.005	0.13	Twill
50X250	0.0055	0.14	0.0045	0.11	Plain
28X500	0.007	0.18	0.0045	0.11	Twill
50X700	0.0055	0.14	0.003	0.076	Twill
80X700	0.004	0.10	0.003	0.076	Twill
100X1000	0.004	0.10	0.002	0.051	Twill
165X800	0.0028	0.071	0.002	0.05	Twill
165X1400	0.0028	0.071	0.0016	0.04	Twill
200X1400	0.0028	0.071	0.0016	0.04	Twill
325X2300	0.0014	0.035	0.001	0.025	Twill

Anping County Fuhang Wire Mesh Products Company Limited is located in Anping County, Hebei Province, China. Fuhang Wire Mesh is a specialized manufacturer and exporter of metal wire mesh products. Capable of providing successfully top-quality wire mesh products and services for purchasers from over 50 countries and regions. Fuhang Wire Mesh introduces updated technology and exquisite process while adopting exquisite and sensible process flow. We have the complete testing and measuring equipment, ensuring the stable and reliable quality of the products. In one word, we are ready to supply our customers with good quality products and service in accordance with their requirements.
